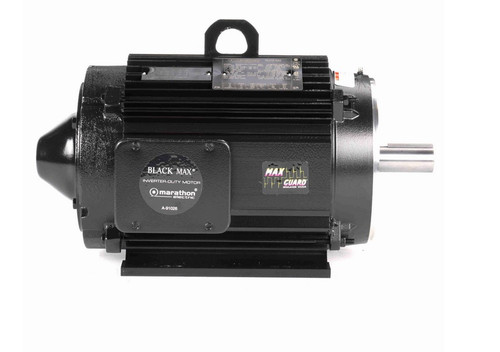

Y544 Marathon 5 hp 1200 RPM 3-Phase 215TC Frame TENV (rigid base) 230/460V Marathon Motor

• 5 hp 1200 RPM, 15.4/7.7 amps 230/460 Volts 60 Hz 3-Phase. Encoder Ready
• NEMA 215TC Aluminum frame, C-face, Keyed Shaft 1 3/8" Diameter x 3 3/8"
• Service Factor: 1.0, Overload protection = None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

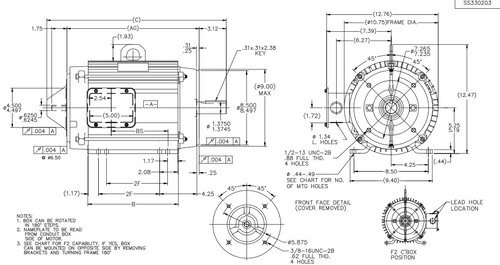

Inverter (Vector) duty three phase electric motor with a C-face mount. 1000:1 constant torque. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 215THTL7776
