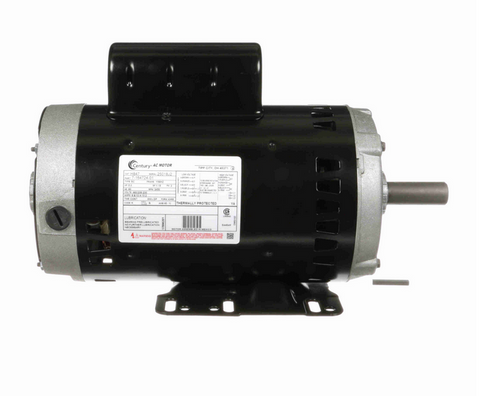

H847 Century 5 hp 3600 RPM 3-Phase 56 Frame ODP (rigid base) 208-230/460V Century Motor # H847

H847 Century 5 hp 3600 RPM 3-Phase 56 Frame ODP (Rigid Base) 208-230/460V Century Motor

This Century H847 motor is a general-purpose, three-phase electric motor designed for industrial applications requiring reliable performance and durability. It replaces equivalent 5 hp, 3600 RPM motors and is suitable for use in standard environments without special requirements.

Key Specifications

• Horsepower: 5 hp
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 13.4-13.2 / 6.6 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56HZ frame

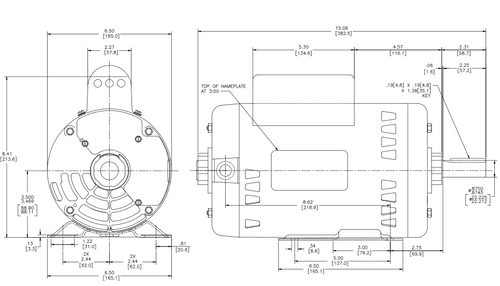

• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2-5/16" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes a keyed shaft for positive coupling with driven equipment. It is equipped with Class B insulation and an automatic overload protection system. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
