A25P3C Nidec 25 hp 1200 RPM 364 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A25P3C Nidec 25 hp 1200 RPM 364 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A25P3C Nidec 25 hp 1200 RPM 364 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A25P3C Nidec 25 hp 1200 RPM 364 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

Nidec

A25P3C Nidec 25 hp 1200 RPM 364 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

(No reviews) Write a Review
$9,764.65
$8,718.84
SKU A25P3C
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 25 HP
RPM 1200
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 29.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 25 hp 1200 RPM, 29.7 amps 460 Volts 60 Hz Three Phase Motor

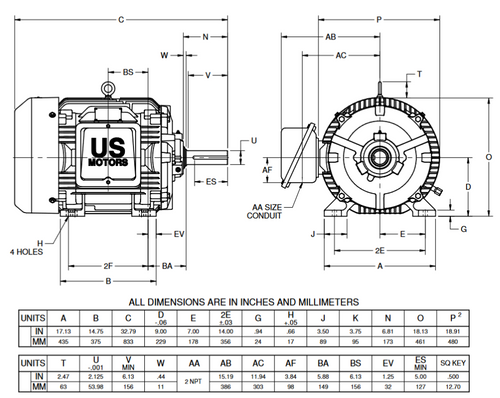

  • NEMA 364 Cast Iron U Frame Keyed Shaft 2 1/8" Diameter x 6 3/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Designed for use in automotive and process industries requiring a U frame motor, Corrosion resistant, Division 1 hazardous location motor for class 1 group D.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GD80

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 25 HP
RPM 1200
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 29.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
