A32P1C Nidec 1 1/2 hp 3600 RPM 184 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

A32P1C Nidec 1 1/2 hp 3600 RPM 184 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

SKU:
A32P1C
Availability:
Please email for availability
Weight:
100.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $939.00
Now: $838.00

CURRENTLY OUT OF STOCK

  • 1 1/2 hp 3600 RPM, 2.2 amps  460 Volts 60 Hz Three Phase Motor

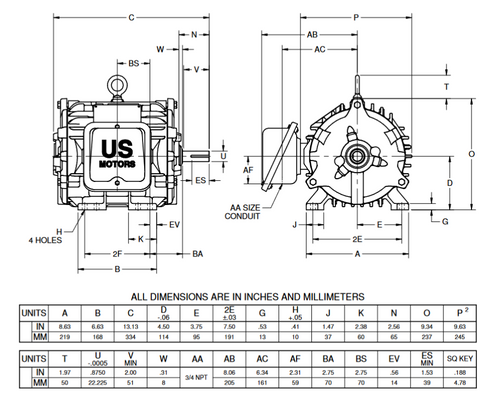

  • NEMA 184 Cast Iron U Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Designed for use in automotive and process industries requiring a U frame motor, Corrosion resistant, Division 1 hazardous location motor for class 1 group D.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GF96

!
