A40P1CS Nidec 40 hp 3600 RPM 364 US Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A40P1CS Nidec 40 hp 3600 RPM 364 US Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A40P1CS Nidec 40 hp 3600 RPM 364 US Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A40P1CS Nidec 40 hp 3600 RPM 364 US Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

Nidec

A40P1CS Nidec 40 hp 3600 RPM 364 US Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

(No reviews) Write a Review
$7,903.95
$7,057.32
SKU A40P1CS
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 40 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 45.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 40 hp 3600 RPM, 45.0 amps 460 Volts 60 Hz Three Phase Motor

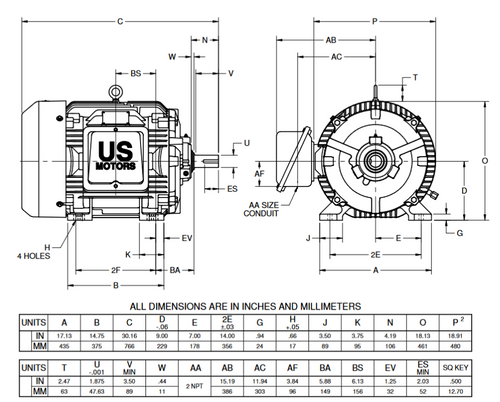

  • NEMA 364 Cast Iron US Frame Keyed Shaft 1 7/8" Diameter x 3 3/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Designed for use in automotive and process industries requiring a U frame motor, Corrosion resistant, Division 1 hazardous location motor for class 1 group D.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GD76

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 40 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 45.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
