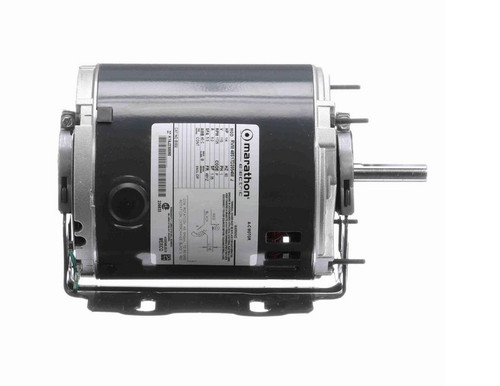

B302 Marathon 1/4 hp (1 speed) 115V 1800 RPM ODP 48Z Frame Resilient Base Blower Motor

B302 Marathon 1/4 hp 115V 1800 RPM ODP 48Z Frame Resilient Base Blower Motor

This Marathon blower motor is designed for HVAC applications requiring reliable air movement. It replaces standard 1/4 hp motors and is suitable for use in systems where a single-speed, open drip proof motor is needed.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 115V, 60 Hz
• Amperage: 5.0 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Z Frame
• Shaft Dimensions: 2 1/4" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and is designed for reversible shaft rotation to accommodate various blower configurations. It includes ball bearings for durability and operates with Class B insulation. The motor is split phase with a service factor of 1.35 and does not include thermal protection. The shaft orientation can be vertical or horizontal depending on installation requirements.

Warranty

1 Year Manufacturer Warranty
