B50T2B Nidec 50 hp 1800 RPM 326T (Rigid Base) 230/460V TEBC Vector-Duty 3-Phase Motor
B50T2B Nidec 50 hp 1800 RPM 326T (Rigid Base) 230/460V TEBC Vector-Duty 3-Phase Motor
B50T2B Nidec 50 hp 1800 RPM 326T (Rigid Base) 230/460V TEBC Vector-Duty 3-Phase Motor
B50T2B Nidec 50 hp 1800 RPM 326T (Rigid Base) 230/460V TEBC Vector-Duty 3-Phase Motor

Nidec

B50T2B Nidec 50 hp 1800 RPM 326T (Rigid Base) 230/460V TEBC Vector-Duty 3-Phase Motor

(No reviews) Write a Review
$5,622.35
$5,019.98
SKU B50T2B
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 50 HP
RPM 1800
Phase Three Phase
Enclosure TEBC
Hertz 60 Hz
Amperage 116/58 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class H
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 50 hp 1800 RPM, 116/58 amps 230/460 Volts 60 Hz Three Phase Motor

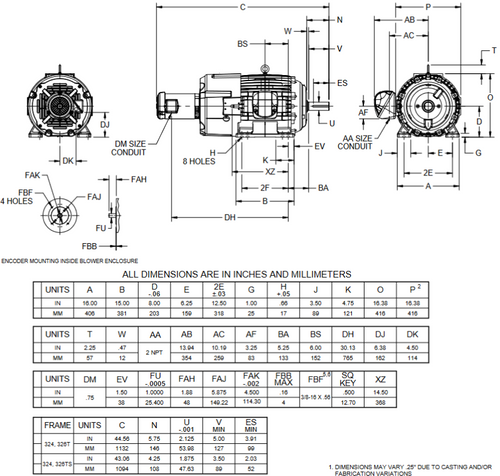

  • NEMA 326T Cast Iron Frame, Keyed Shaft 2 1/8" Diameter x 5 1/4"
  • Service Factor: 1.0 Overload protection = None
  • C-Face Mount, Ball Bearings, Class H Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools located in demanding, corrosive environments. 5000:1 constant torque from 0 to nominal motor rpm. NEMA design A. Encoder and brake provisions. Wiring diagram on motor name plate. TEBC = Totally-Enclosed Blower-Cooled. FP44

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 50 HP
RPM 1800
Phase Three Phase
Enclosure TEBC
Hertz 60 Hz
Amperage 116/58 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class H
Mounting Rigid Base
!
