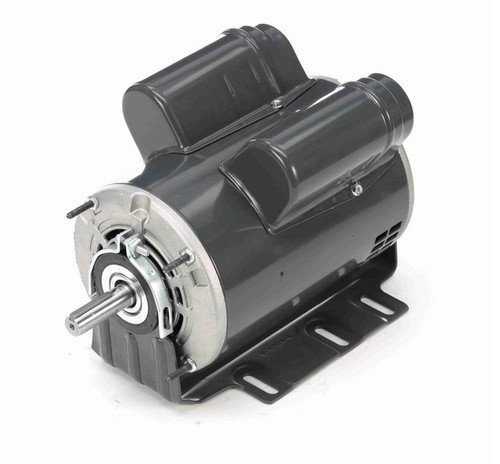

B609 Marathon 3/4 hp (1 speed) 277V 1800 RPM ODP 56 Frame Cap Start/Run Resilient Base Motor

• 3/4 hp 1800 RPM, 4.3 amps, 277 Volts 60 Hz, Capacitor Start, Capacitor Run
• NEMA 56 Frame Keyed Shaft 1 7/8" x 5/8" Diameter, 1 speed
• Service Factor = 1.25, Thermal Protection = None
• Resilient Base, Reversible, Ball Bearings, Class B insulation
• 1 Year Manufacture Warranty

Blower motors are used to blow air inside of buildings. Capacitor Start motors have higher starting torque than others. Capacitor Run motors have higher effieciency. Shaft may be vertical or horizontal. ODP = Open Drip Proof. 056B17D2013
