- Compressed Air Connection 1/8 NPT
- 3/8" FPT Inlet & 3/4" MPT/ 1/4" MPT Outlet
- 1/8 hp Air Motor
- 7.2 GPM; 40' Max. Head Feet
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C
- One Year Warranty
March Part No. 0125-0088-0300
Perfect for Applications Including
Applications for the BC-2CP-MD-AM Mag Drive includes chemical recirculation and chemical transfer.
Great for Chemicals Including
The BC-2CP-MD-AM has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The BC-2CP-MD-AM may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the BC-2CP-MD-AM.
Summary

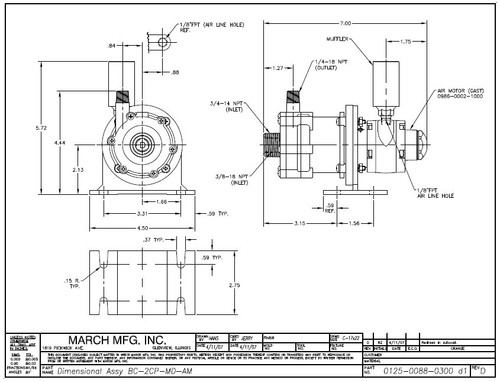

March Pump’s industrial BC-2CP-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 7.2 gallons per minute at 1 foot, and its maximum head is 40 Feet (17.3PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, and Ceramic. The inlet connection is 3/8 inch female pipe thread and 3/4 inch male pipe thread, and the outlet is 1/4 inch male pipe thread. The standard motor is a 0.125 Horsepower Compressed Air Motor which requires 23SI. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March BC-2CP-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents.
To determine if the March BC-2CP-MD is suitable for your application, please contact March Pump.
