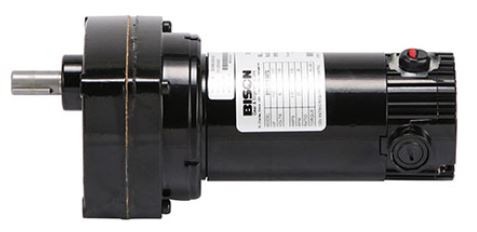

Bison 011-175-0072 Gear Motor - 1/20 hp 25 RPM 90/130VDC
Bison 011-175-0072 Gear Motor - 1/20 hp 25 RPM 90/130VDC
Bison 011-175-0072 Gear Motor - 1/20 hp 25 RPM 90/130VDC
Bison 011-175-0072 Gear Motor - 1/20 hp 25 RPM 90/130VDC
Bison 011-175-0072 Gear Motor - 1/20 hp 25 RPM 90/130VDC
Bison 011-175-0072 Gear Motor - 1/20 hp 25 RPM 90/130VDC

Bison Gear Motors

Bison 011-175-0072 Gear Motor - 1/20 hp 25 RPM 90/130VDC

(No reviews) Write a Review
$684.18
$626.03
SKU 011-175-0072
UPC 8.45E+11
Availability IN STOCK READY TO SHIP
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 90V
Horsepower 1/20 HP
Enclosure TENV
Amperage 62 Amps
Bearings Ball Bearings
Adding to cart… The item has been added
Description

Bison Model 011-175-0072
175 Series DC Parallel Shaft Gear Motor

  • 1/20 hp .62 amps - 90 Volts DC
  • 25 RPM rated on 90 Volts DC
  • 36 RPM rated on 130 Volts DC
  • Torque 111 inch pounds
  • Shaft 1/2" Diameter
  • Over Hung lbs. = 150
  • Rotation = Reversible
  • TENV Enclosure
  • Ball Bearings
  • Permanent Magnet motor
  • Hardened Steel worm. Forged bronze gear
  • Lubrication: Lifetime oil bath, sealed and gasketed
  • Any angle mount

Optional Accessories:
P198-100-9111 Junction Box
P125-100-9998 Mounting Plate
Can use with Leeson speed control 174307, 174308

Suggested replacement reference for:
Baldor GPP233112

Warranty Information
Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 90V
Horsepower 1/20 HP
Enclosure TENV
Amperage 62 Amps
Bearings Ball Bearings
!
