Bison 016-101-0072 Gear Motor 1/20 hp 22 RPM 115V 60HZ.

Bison 016-101-0072 Gear Motor 1/20 hp 22 RPM 115V 60HZ.

SKU:
016-101-0072
Availability:
Bison is requiring minimum qty purchases, with a lead time of 12 weeks to manufacture the motors.
Weight:
10.00 LBS
Minimum Purchase:
25 units
Shipping:
Free Shipping
Confirmations:
All purchases understand the lead time requirements, we will not be sending out update emails.
Was: $551.01
Now: $440.81
Adding to cart… The item has been added
  • 100 Series AC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 100 inch pounds; Over Hung lbs. = 150

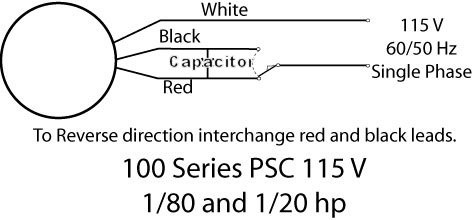

  • Rotation = Reversible; Junction Box Included
  • 1/20 hp 22 RPM, .62 amps, 115 VAC
  • TENV Enclosure, Keyed Shaft, Ball Bearings

Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty. Baldor equivilent GCP24124.

!
