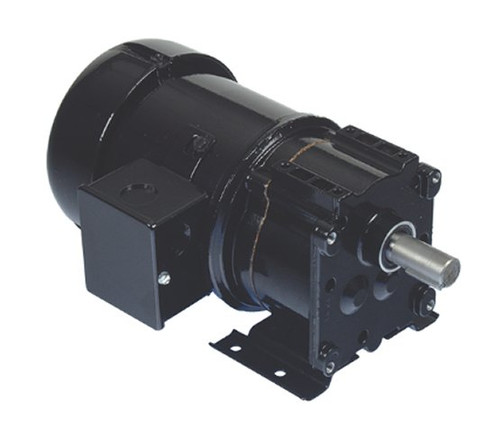

Bison 016-246-6082 Gear Motor 1/6 hp 20 RPM 115/230V 60/50 HZ.
Bison 016-246-6082 Gear Motor 1/6 hp 20 RPM 115/230V 60/50 HZ.
Bison 016-246-6082 Gear Motor 1/6 hp 20 RPM 115/230V 60/50 HZ.
Bison 016-246-6082 Gear Motor 1/6 hp 20 RPM 115/230V 60/50 HZ.

Bison Gear Motors

Bison 016-246-6082 Gear Motor 1/6 hp 20 RPM 115/230V 60/50 HZ.

(No reviews) Write a Review
$1,088.04
$837.89
SKU 016-246-6082
UPC 8.45E+11
Availability Bison is requiring minimum qty purchases, with a lead time of 12 weeks to manufacture the motors.
Minimum Purchase: 10 units
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
Confirmations All purchases understand the lead time requirements, we will not be sending out update emails.
Voltage 115/230V
Horsepower 1/6 HP
Enclosure TEFC
Hertz 60/50 Hz
Amperage 2.1/1.1 Amps
Bearings Ball Bearings
Adding to cart… The item has been added
Description
  • 246 Series AC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 300 inch pounds; Over Hung lbs. = 327
  • Rotation = Reversible
  • 1/6 hp 20 RPM, 2.1/1.1 amps, 115/230 VAC
  • TEFC Enclosure, Keyed Shaft, Ball Bearings

Motor Type: Permanent Split Capacitor. Gearhead Specifications: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel. 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. One Year Manufacture Warranty. Opening motor voids the warranty.

Warranty Information
Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Confirmations All purchases understand the lead time requirements, we will not be sending out update emails.
Voltage 115/230V
Horsepower 1/6 HP
Enclosure TEFC
Hertz 60/50 Hz
Amperage 2.1/1.1 Amps
Bearings Ball Bearings
!
