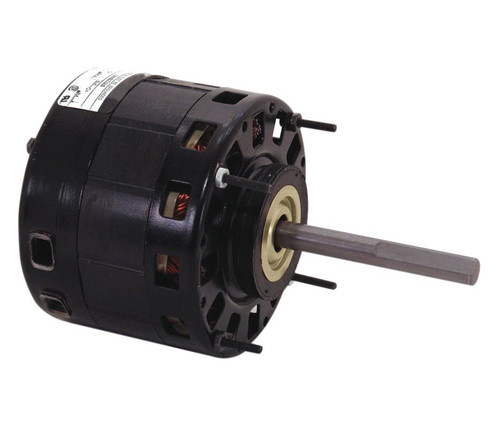

BL6530 Century 1/3 hp 1075 RPM 5" 3-Speed 115V Direct Drive Furnace Motor

BL6530 Century 1/3 hp 1075 RPM 5" 3-Speed 115V Direct Drive Furnace Motor

This Century direct drive furnace motor delivers reliable performance with 1/3 horsepower and a 3-speed PSC design. It is a suggested replacement for models F42F21A01 and Dayton 4MB26, suitable for residential and light commercial HVAC applications.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1075
• Voltage: 115V, 60 Hz
• Amperage: 6.3 amps
• Shaft Dimensions: 1/2" diameter x 4.66" length
• Rotation: Reversible
• Enclosure: Open Ventilation - Air Over
• Frame / Diameter: 5"
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a belly band or stud mount with a bolt circle diameter of 4.62" and a motor case length of 4.09". It requires a 15 MFD, 2-prong capacitor (not included) for operation. Extended thru bolts and resilient ring mounts provide secure installation. Compatible belly band brackets include the Torsion Flex Bracket (#FM50) and the Welded 3-Ring Bracket (#2MEV2).

Cross Reference

• F42F21A01. Dayton 4MB26

Warranty

1 Year Manufacturer Warranty
