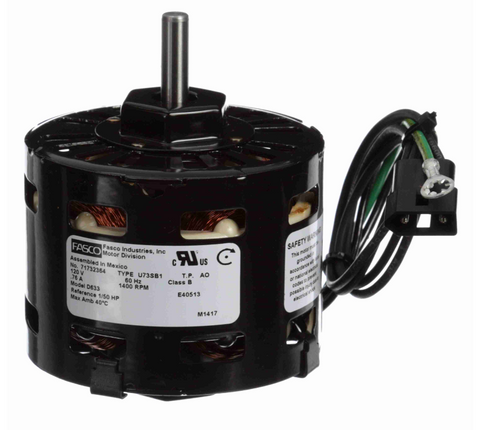

Fasco D633 Motor | Broan Fan Motor 1/50 hp 1400 RPM 115V

Fasco D633 Motor | Broan Fan Motor 1/50 hp 1400 RPM 115V

The Fasco D633 is a shaded pole motor designed as a direct replacement for Broan fan motors, including models 99080274, 99080273, JA2M373, JA2C396, JA2M428, and Century 633. It is ideal for HVAC applications requiring reliable, low-horsepower fan operation.

Key Specifications

• Horsepower: 1/50 hp
• RPM: 1400
• Voltage: 115V
• Amperage: 0.76 amps
• Enclosure: Shaded Pole
• Frame / Diameter: 3.3"
• Shaft Dimensions: 5/16" diameter x 1 3/8" length
• Rotation: CWSE (Clockwise Shaft End)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features sleeve bearings for smooth, quiet operation and is designed for clockwise shaft end rotation. Its compact 3.3-inch diameter frame and standard shaft size ensure compatibility with a variety of fan assemblies. Installation is straightforward when replacing specified Broan and Century motor models.

Cross Reference

• Century 633

Warranty

• Dimensional Drawing
