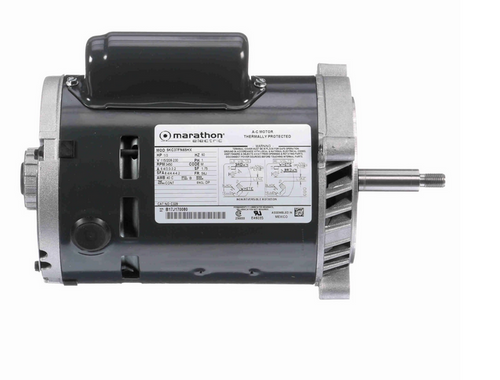

C329 Marathon 1/3 hp Basic Jet Pump Motor 3600 RPM 115/208-230V ODP 56J Frame (no base)

C329 Marathon 1/3 hp Basic Jet Pump Motor 3600 RPM 115/208-230V ODP 56J Frame (no base)

This Marathon 1/3 horsepower jet pump motor is designed for spa pump applications and serves as a reliable replacement motor. It operates at 3600 RPM with capacitor start and induction run, suitable for 115/208-230V power supplies.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 3600
• Voltage: 115/208-230V
• Amperage: 6.4/3.0-3.2 amps
• Enclosure: Open Drip Proof (ODP)

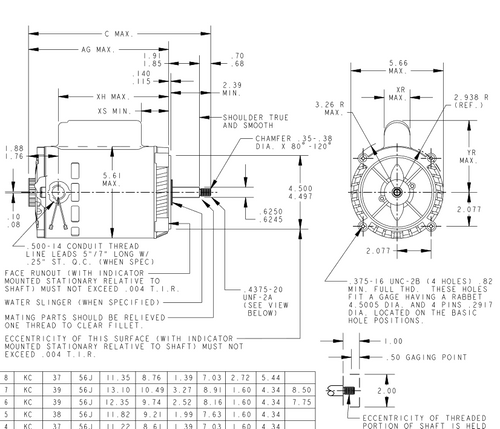

• Frame / Diameter: NEMA 56J Frame, 5'8" diameter
• Shaft Dimensions: 1-5/8" long threaded stainless steel shaft
• Rotation: Clockwise (CW) viewed opposite shaft end
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and induction run design with a service factor of 1.75 and automatic overload protection. It comes without a base and includes a 5'8" diameter shaft made of stainless steel. Note that this motor is intended for spa pump use only and is not suitable for pool applications due to the absence of suction cut-off protection.

Warranty

1 Year Manufacturer Warranty
