Century 89 (89PSC) | 1/10 hp 1050 RPM 5-Speed 5" Diameter 115 Volts Double Shafted Motor

Century 89 (89PSC) | 1/10 hp 1050 RPM 5-Speed Double Shafted Motor

The Century 89PSC is a 1/10 horsepower, 5-speed motor designed for fan coil air conditioners and unit heater fans. It serves as a direct replacement for Fasco D289 and compatible models from Century/AO Smith and Dayton.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1050
• Voltage: 115 Volts, 60 Hz
• Amperage: 1.62 amps
• Frame / Diameter: 5" diameter
• Shaft Dimensions: Double shaft, 10.7" length x 1/2" diameter
• Bearings: Sleeve bearings

Product Features & Fitment

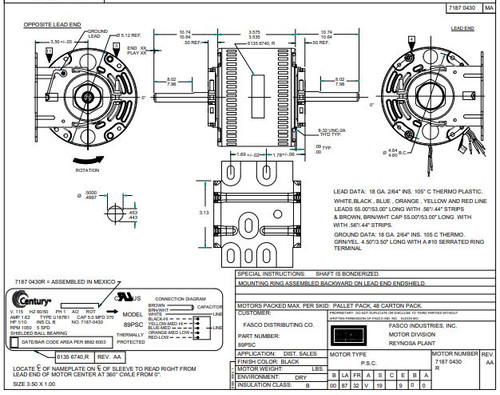

This motor features a resilient mount with a 4.62" bolt circle and a motor length of 3.56" excluding shafts. The shaft height measures 3.50". It requires a 5 MFD/370 VAC capacitor for operation, which is not included. The new PSC design improves energy efficiency compared to previous models. For a more economical option, consider the D289P PEMS brand motor.

Cross Reference

• Fasco D289 model

Warranty

1 Year Manufacturer Warranty
