D20V2B Nidec 20 hp 1800 RPM 256T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
(No reviews)
Write a Review
Write a Review
Nidec
D20V2B Nidec 20 hp 1800 RPM 256T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
$1,981.45
$1,769.39
SKU
D20V2B
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
20 HP
RPM
1800
Phase
Three Phase
Enclosure
ODP
Hertz
60 Hz
Amperage
48.0/24.0 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
D20V2B Nidec 20 hp 1800 RPM 256T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
This Nidec D20V2B motor is a 20 horsepower, 1800 RPM inverter-duty motor designed for three-phase power systems. It is ideal for applications such as material handling, pumps, and fans, providing reliable speed control in normal operating environments.
Key Specifications
- Horsepower: 20 hp
- RPM: 1800
- Voltage: 230/460 V
- Amperage: 48.0/24.0 A
- Enclosure: Open Drip-Proof (ODP)

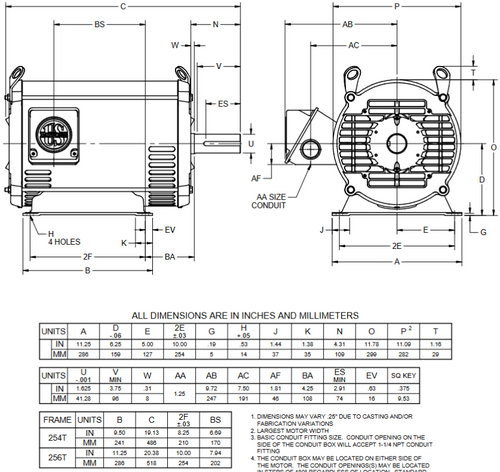

- Frame / Diameter: NEMA 256T Rolled Steel Frame
- Shaft Dimensions: Keyed shaft, 1 5/8" diameter x 4" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a rigid base with C-face mounting provisions and cast aluminum end bells for durability. It includes Class F insulation and supports a 5:1 speed range at constant torque and up to 20:1 at variable torque, making it suitable for variable speed drives. Wiring diagrams are provided on the motor nameplate for ease of installation.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 20 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 48.0/24.0 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
