D291 Motor | 1/10 hp 1050 RPM 4-Speed 5" Diameter 115 Volt

D291 Motor | 1/10 hp 1050 RPM 4-Speed 5" Diameter 115 Volt

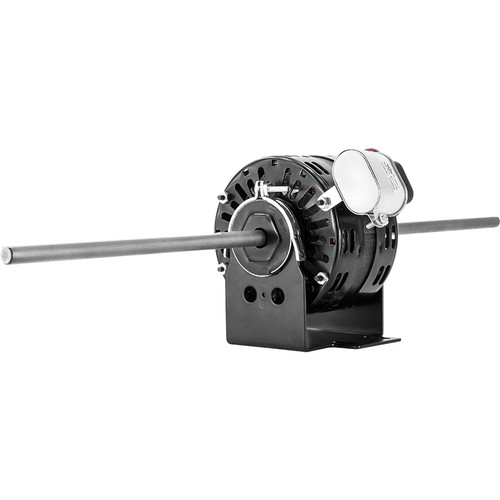

This 1/10 horsepower motor is designed for fan coil air conditioners and unit heater fans, providing reliable performance with a permanent split capacitor design. It serves as a direct replacement motor for HVAC applications requiring a 4-speed, 115 Volt motor.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1050
• Voltage: 115 Volt
• Amperage: 2.2 amps
• Frame / Diameter: 5" diameter
• Shaft Dimensions: Double shaft, 10 3/4" x 1/2" x 10 3/4"
• Bearings: Sleeve bearings

Product Features & Fitment

The motor features a resilient mount with a 4.62" bolt circle and a motor length of 3 1/4" excluding shafts. It includes 2 1/2" O.D. rubber mounting rings for secure installation. Designed for open ventilation and air-over cooling, this motor comes with the capacitor included for immediate use.

Warranty

1 Year Manufacturer Warranty
