30 hp 1800 RPM, 69.0/34.0 amps 230/460 Volts 60 Hz Three Phase Motor
NEMA 286T Rolled Steel Frame with Cast Iron End Bells, Keyed Shaft 1 7/8" Diameter x 4 5/8"
Service Factor: 1.15 Overload protection = None
C-Face Mount, Ball Bearings, Class F Insulation, Reversible
1 Year Manufacture Warranty
Speed controllable motor for material handling, pumps, and fans, in normal environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. ODP = Open Drip-Proof. HJ90

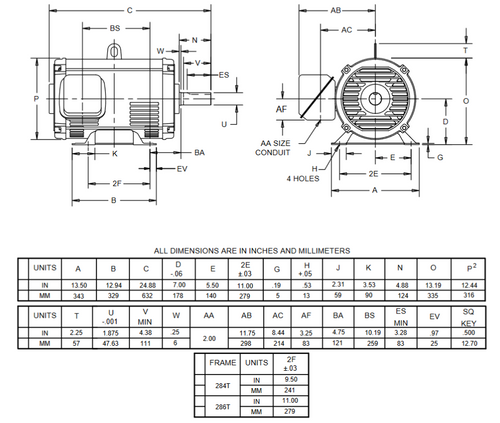

D30V2B Nidec 30 hp 1800 RPM 286T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
- SKU:
- D30V2B
- Weight:
- 250.00 LBS
- Shipping:
- Calculated at Checkout
