D3V2B Nidec 3 hp 1800 RPM 182T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

SKU:
D3V2B
Weight:
50.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $523.00
Now: $467.10
Adding to cart… The item has been added
  • 3 hp 1800 RPM, 7.6/3.8 amps 230/460 Volts 60 Hz Three Phase Motor

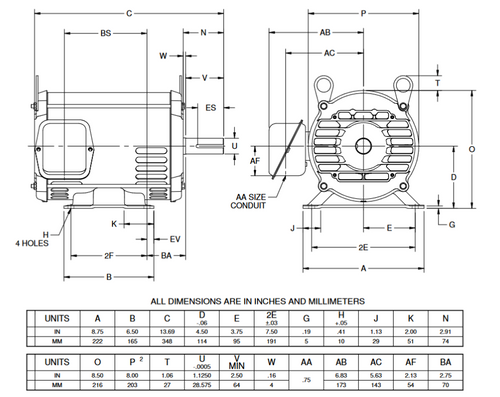

  • NEMA 182T Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable motor for material handling, pumps, and fans, in normal environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. ODP = Open Drip-Proof. FV33
