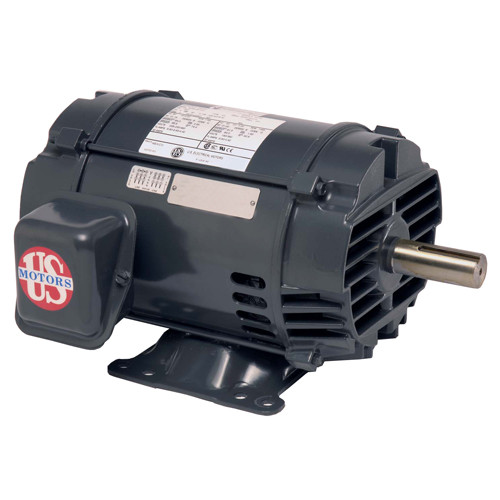

D40P1GS Nidec 40 hp 3600 RPM 286TS Frame (Rigid Base) 575V ODP 3-Phase Electric Motor
D40P1GS Nidec 40 hp 3600 RPM 286TS Frame (Rigid Base) 575V ODP 3-Phase Electric Motor
D40P1GS Nidec 40 hp 3600 RPM 286TS Frame (Rigid Base) 575V ODP 3-Phase Electric Motor
D40P1GS Nidec 40 hp 3600 RPM 286TS Frame (Rigid Base) 575V ODP 3-Phase Electric Motor

Nidec

D40P1GS Nidec 40 hp 3600 RPM 286TS Frame (Rigid Base) 575V ODP 3-Phase Electric Motor

(No reviews) Write a Review
$2,521.95
$2,251.24
SKU D40P1GS
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 40 HP
RPM 3600
Phase Three Phase
Frame 286TS
Enclosure ODP
Hertz 60 Hz
Amperage 36 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 40 hp 3600 RPM, 36 amps 575 Volts 60 Hz Three Phase Motor
  • NEMA 286TS Rolled Steel Frame, Keyed Shaft 1 5/8" Diameter x 3 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor designed for use with pumps, fans, and compressors where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. G93559

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 40 HP
RPM 3600
Phase Three Phase
Frame 286TS
Enclosure ODP
Hertz 60 Hz
Amperage 36 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
