4M067 Dayton Electric C-Frame Vent Fan Motor 1/500 hp 3000 RPM 115V

4M067 Dayton Electric C-Frame Vent Fan Motor 1/500 hp 3000 RPM 115V

The 4M067 Dayton Electric C-Frame Vent Fan Motor is designed for use in various fan applications including bath fans, hood fans, and humidifier/dehumidifiers. It serves as a reliable replacement motor offering consistent performance in ventilation systems.

Key Specifications

• Horsepower: 1/500 hp
• RPM: 3000
• Voltage: 115V
• Amperage: 0.22 amps
• Frame / Diameter: C-Frame
• Shaft Dimensions: 3/16" diameter x 1" length, round shaft
• Rotation: Clockwise (CW) facing the shaft

Product Features & Fitment

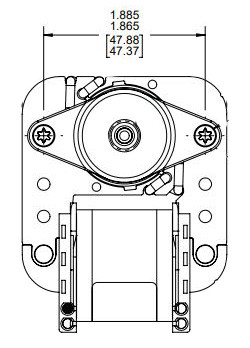

This motor features a continuous duty rating with Class B insulation for durability. It mounts using two studs spaced 1-7/8" on center, ensuring secure installation. The stack size measures 3/8", and the rotation direction is determined when facing the shaft.

Warranty

1 Year Manufacturer Warranty
