Dayton 1TDR8 Blower 358 CFM 1550 RPM 230V 60/50hz (2C917)

Dayton 1TDR8 Blower 358 CFM 1550 RPM 230V 60/50hz (2C917)

The Dayton 1TDR8 is an electric blower delivering 273 CFM at 1640 RPM, designed as a direct replacement for the discontinued Dayton Model 2C917. It is ideal for applications requiring reliable airflow with automatic overload protection.

Key Specifications

• RPM: 1640
• Voltage: 230V 60/50 Hz
• Amperage: 0.77 amps
• Bearings: Ball Bearings

Product Features & Fitment

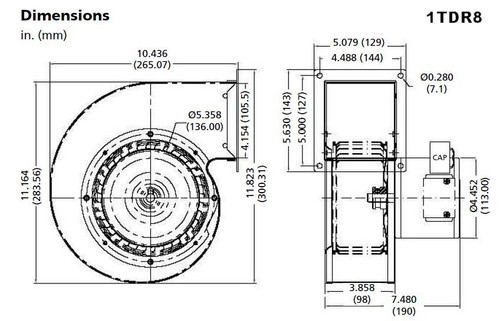

This blower supports all-position mounting and features an outlet flange bolt hole dimension of 4-1/2" x 5". It is non-reversible and not recommended for speed control. The unit includes automatic overload protection but does not come with a power cord or on/off switch. Maximum inlet temperature is 104°F.

Notice: This product is restricted from sale and shipment to Canada.

Warranty

• Specification Sheet
