TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 15 hp 1200 RPM, 38.3/19.1 amps 230/460 Volts 60 Hz. Three Phase

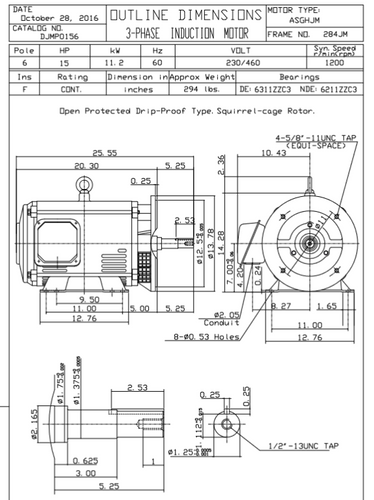

- NEMA 284T JP/JM Frame, 5 1/4 x 1 1/4" Dia. JM Pump Shaft
- Rolled Steel Frame, Open Drip Proof, EPACT EFFICIENT
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Close-coupled pump motor for use on pumps.
