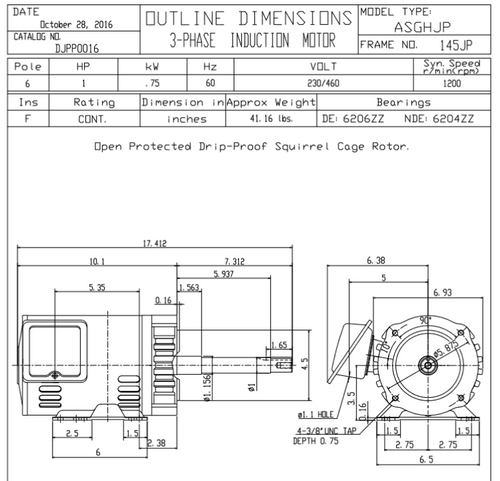

DJPP0016 TECO-Westinghouse 1 HP 1200 RPM 145T JP 230/460V ODP Rolled Steel 3-Ph Pump Motor

SKU:
DJPP0016
Weight:
45.00 LBS
Shipping:
Calculated at Checkout
$367.58
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 1 hp 1200 RPM, 3.44/1.72 amps 230/460 Volts 60 Hz. Three Phase
  • NEMA 145T JP/JM Frame, 7 5/16 x 7/8" Dia. JP Pump Shaft
  • Rolled Steel Frame, Open Drip Proof, EPACT EFFICIENT
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Close-coupled pump motor for use on pumps.
