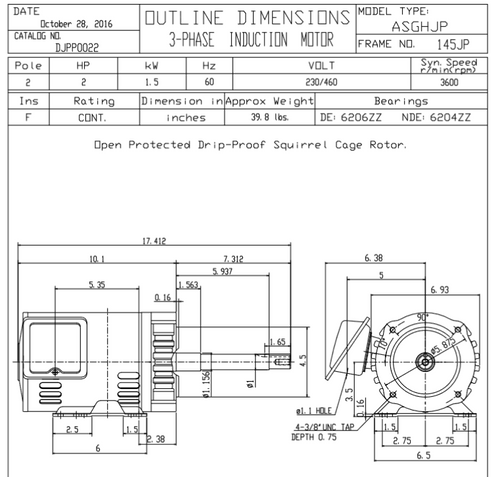

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 2 hp 3600 RPM, 5.09/2.55 amps 230/460 Volts 60 Hz. Three Phase
- NEMA 145T JP/JM Frame, 7 5/16 x 7/8" Dia. JP Pump Shaft
- Rolled Steel Frame, Open Drip Proof, EPACT EFFICIENT
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Close-coupled pump motor for use on pumps.
