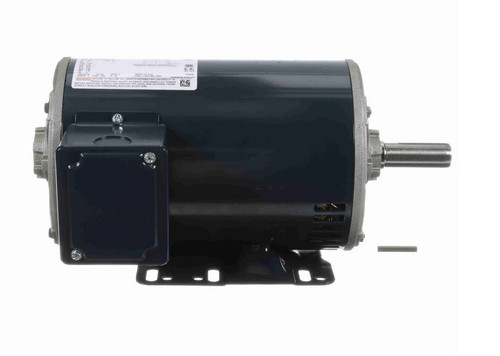

E901A Marathon 1 hp 1800 RPM 200V 3-Phase 143T Frame ODP (rigid base) Motor
(No reviews)
Write a Review
Write a Review
Marathon
E901A Marathon 1 hp 1800 RPM 200V 3-Phase 143T Frame ODP (rigid base) Motor
$767.28
$629.95
SKU
E901A
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
200V
Horsepower
1 HP
RPM
1800
Phase
Three Phase
Frame
143T
Enclosure
ODP
Hertz
60 Hz
Amperage
3.5 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base
- 1 hp 1800 RPM, 3.5 amps 200 Volts 60 Hz. Three Phase
- NEMA Rolled Steel 143T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
- Service Factor: 1.15, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class B Insulation
- 3 Year Manufacture Warranty
General purpose three phase electric motor, Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip-Proof. 143TTDR16056
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 200V |
| Horsepower | 1 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 143T |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 3.5 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
