- 2 hp 1800 RPM, 6.0/3.0 amps 230/460 Volts 60 Hz. Three Phase
- NEMA Rolled Steel 145T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
- Service Factor: 1.15, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 3 Year Manufacture Warranty

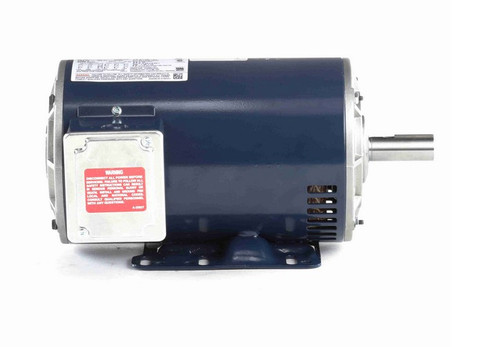

General purpose three phase electric motor, Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip-Proof. 145TTDR16352
