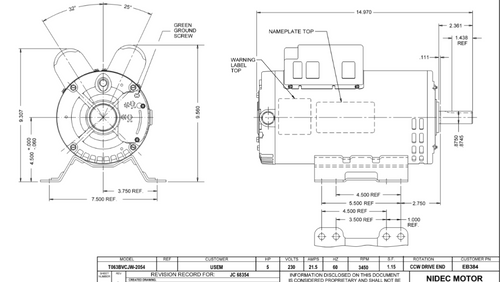

EB384 Nidec 5 HP 3600 RPM 230V 56 Frame (Base) ODP Air Compressor Motor

EB384 Nidec 5 HP 3600 RPM 230V 56 Frame (Base) ODP Air Compressor Motor

This Nidec EB384 motor is a 5 HP, single-speed motor designed for air compressors requiring high break-down torque. It serves as a reliable replacement motor with a 56 frame base mount configuration and is suitable for applications needing a capacitor start/run setup.

Key Specifications

• Horsepower: 5 HP
• RPM: 3600
• Voltage: 230V
• Amperage: 21.5 amps
• Enclosure: Open Drip-Proof (ODP)
• Frame / Diameter: 56 Frame, Rolled Steel
• Shaft Dimensions: 7/8" Diameter x 2 3/8" Length
• Rotation: Counterclockwise (CCW) drive end
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for secure installation and includes a keyed shaft for proper coupling. It is equipped with Class F insulation and manual overload protection. Wiring diagrams are provided on the motor nameplate to assist with correct electrical connections.

Warranty

1 Year Manufacturer Warranty
