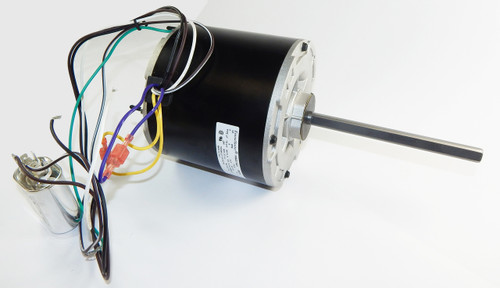

Economaster EM3729F HVAC Condenser Fan Motor Replacement

Economaster EM3729F HVAC Condenser Fan Motor Replacement

The Economaster EM3729F is a 1/3 HP condenser fan motor designed as a direct replacement for residential and light commercial HVAC condenser units. It ensures reliable airflow and efficient cooling performance for air conditioning systems operating at 208-230V.

Key Specifications

• Horsepower: 1/3 HP
• RPM: 1075
• Voltage: 208-230V
• Amperage: 2.2 - 2.5 Amps
• Enclosure: TEAO (Totally Enclosed Air Over)
• Frame / Diameter: 48Y / 5.6 Inches
• Shaft Dimensions: 1/2 Inch Diameter
• Rotation: Reversible CW/CCW
• Bearings: Ball Bearings

Product Features & Fitment

This condenser fan motor features a durable TEAO enclosure and precision-balanced design to minimize vibration and noise, ensuring smooth and quiet operation in demanding outdoor HVAC environments. It is engineered to meet or exceed OEM performance standards and offers reversible rotation for flexible installation options. The EM3729F is compatible with a wide range of residential and light commercial air conditioning condenser fan units, making it a cost-effective and trusted replacement solution.

Cross Reference

• Economaster EM3729F
• Century EM3729
• FSE1036SV1
• FSE1036SF
• Fasco D925
