1 hp 3600 RPM, 3.5-3.4/1.7 amps 208-230/460 Volts 60 Hz Three Phase Motor
NEMA 56J Frame, Shaft 5/8" Diameter x 1 7/8" Long with threaded end
Service Factor: 1.4, Overload protection = None
Rigid Mount, Ball Bearings, Class B Insulation, CCW Drive End
1 Year Manufacture Warranty

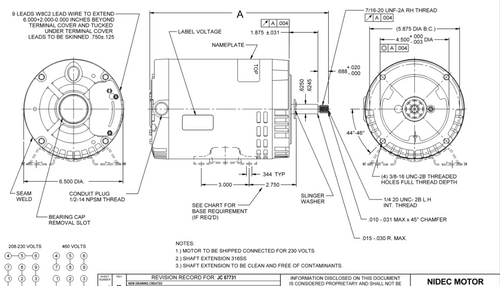

Special purpose three phase C- Face motor is usually used in commercial applications involving specialized pumps. Wiring diagram on motor name plate. ODP = Open Drip-Proof. P063ELH5021013J
EE506B Nidec 1 HP 3600 RPM 3-Phase 208-230/460V 56J Frame (Rigid Base) ODP Special Pump Motor
- SKU:
- EE506B
- Weight:
- 22.00 LBS
- Shipping:
- Calculated at Checkout
- ON SALE:
- LIMITED TIME DISCOUNT
Nidec
