- 5 hp 3600 RPM, 13.1-11.8/5.9 amps
- 208-230/460 Volts 60 Hz Three Phase Motor

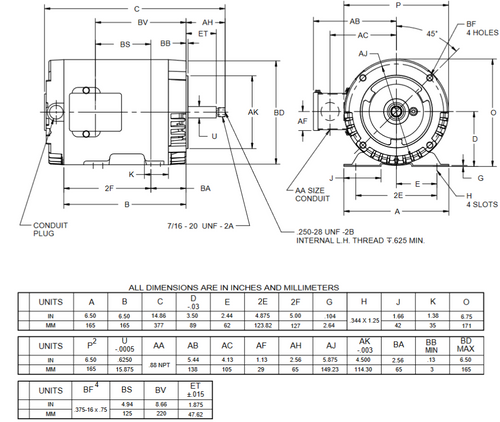

- NEMA 56J Frame
- Keyed Shaft 5/8" Diameter x 1 7/8" long plus threaded end
- Service Factor: 1.0
- Overload protection = None.
- ODP = Open Drip-Proof
- Rigid Mount, Ball Bearings, Class F Insulation, CCW Drive End
- 1 Year Manufacture Warranty
Special purpose three phase C- Face motor is usually used in commercial applications involving specialized pumps. Wiring diagram on motor name plate.
Model: DS97
