EP0032 TECO Westinghouse 3 hp 3600 RPM 182T Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

EP0032 TECO Westinghouse 3 hp 3600 RPM 182T Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

This TECO Westinghouse NEMA Premium electric motor delivers reliable performance for severe duty industrial applications such as crushers, compressors, mixers, and conveyors. It is designed to replace standard 3 hp motors requiring a rugged, cast iron frame and inverter-compatible operation.

Key Specifications

• Horsepower: 3 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 7.06/3.53 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54

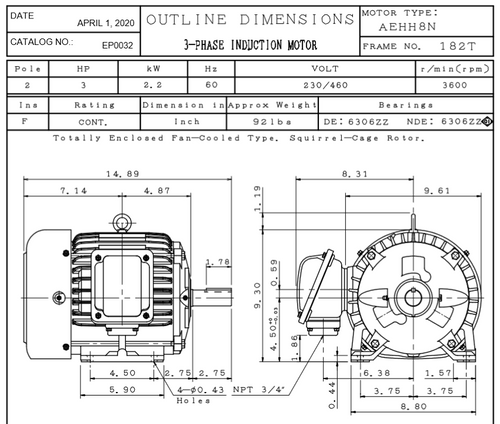

• Frame / Diameter: NEMA 182/184T Frame, 2 3/4 x 1 1/8" Diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base for stable mounting and is constructed with a durable cast iron frame suitable for harsh environments. It includes Class F insulation and is designed without thermal overload protection. This motor is suitable for inverter duty with a speed range of 20:1 for variable torque and 10:1 for constant torque, complying with NEMA MG-1 Part 31.4.4.2 standards. It is UL recognized, CSA approved, and CE marked for safety and quality assurance.

Warranty

1 Year Manufacturer Warranty
