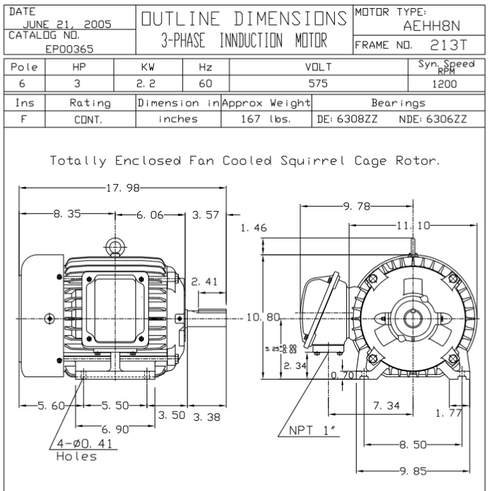

EP00365 TECO Westinghouse 3 hp 1200 RPM 213T Cast Iron 575V TEFC Severe Duty 3-Phase Motor

SKU:
EP00365
Weight:
180.00 LBS
Shipping:
Calculated at Checkout
$704.12
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 3 hp 1200 RPM, 3.22 amps 575 Volts 60Hz. Three Phase
  • NEMA 213T Frame, 3 3/8 x 1 3/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Applications: Crushers, Compressors, Mixers, Conveyors, Any Severe Duty Application
