Fasco K101 Motor | Fasco C-Frame Wall Heater Fan Motor .52 amps 1260 RPM 240V (CCW rotation)

Fasco K101 Motor | Fasco C-Frame Wall Heater Fan Motor

The Fasco K101 is a C-frame wall heater fan motor designed for continuous duty in various fan applications such as bath fans, hood fans, and humidifiers/dehumidifiers. It replaces Fasco models 8767-8036 and 7102-0001, providing reliable performance with counterclockwise rotation when facing the shaft.

Key Specifications

• Amperage: 0.52 amps
• RPM: 1260
• Voltage: 240V

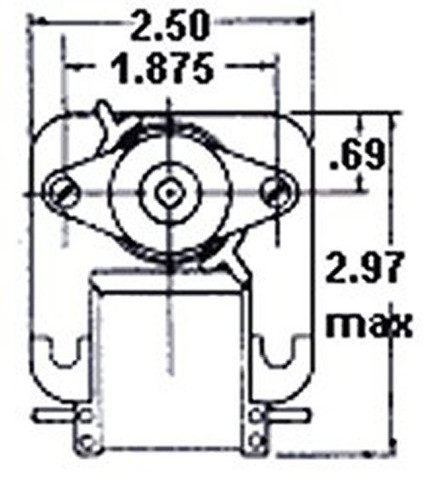

• Frame / Diameter: C-Frame, Iron Stack Size 1.25"
• Shaft Dimensions: 0.217" diameter x 1.34" length
• Rotation: Counterclockwise (CCW)
• Enclosure: Skeleton
• Mounting: 2 studs, 1 7/8" on center

Product Features & Fitment

This motor features Class B insulation and is designed for continuous duty operation. It includes two 6-inch wire leads for electrical connections. The mounting pattern is standardized across similar motors, allowing for easy replacement and installation. Rotation direction is determined when facing the shaft, ensuring proper fitment in your application.

Cross Reference

• Fasco 8767-8036 OR 7102-0001

Warranty

• Fasco Catalog Page
