FASCO D292 Direct OEM Aftermarket Replacement 1/10 hp 1050 RPM 4-Speed 5" Diameter 230 Volts

SKU:: D292P
UPC:
Weight:: 10.00 LBS
Width:: 25.00 (in)
Height:: 25.00 (in)
Depth:: 11.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNT & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 230V
Horsepower:: 1/10 HP
RPM:: 1050
Hertz:: 60 Hz
Amperage:: 0.79 Amps
Bearings:: Sleeve Bearings
Speeds:: 4-Speed
Mounting:: Resilient

Current Stock:

Was: $230.00

Now: $129.95

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

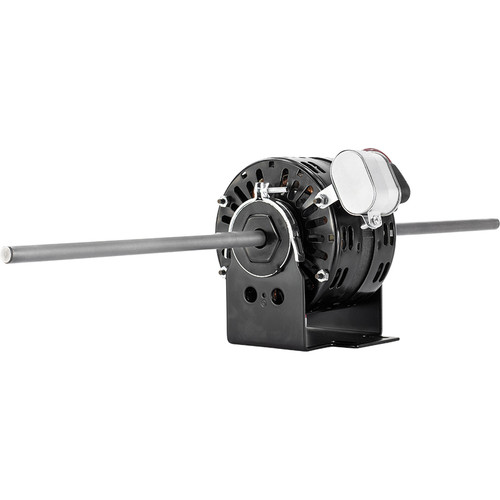

FASCO D292 Direct OEM Aftermarket Replacement Motor

This FASCO D292 direct OEM aftermarket replacement motor is designed for fan coil air conditioners and unit heater fans. It provides reliable performance as a 1/10 hp, 4-speed motor compatible with existing FASCO D292 models.

Key Specifications

Horsepower: 1/10 hp
RPM: 1050 (4-Speed: Hi, Med. Hi, Med. Low, Low)
Voltage: 208-230 Volts, 60 Hz
Amperage: 0.79-0.84 Amps
Frame / Diameter: 5 Inch Diameter
Shaft Dimensions: Double shaft, 10 3/4" x 1/2" x 10 3/4"
Bearings: Sleeve Bearings
Enclosure: Open Ventilation - Air Over

Product Features & Fitment

This PSC style motor includes a capacitor and features a resilient mount with a bolt circle diameter of 4.62". The motor length excluding shafts measures 3-3/8" with a shaft height of 3.5". It is manufactured by PEMS and designed for straightforward installation as a direct replacement for FASCO D292 and cross-referenced models 7186-0018 and 71860018.
