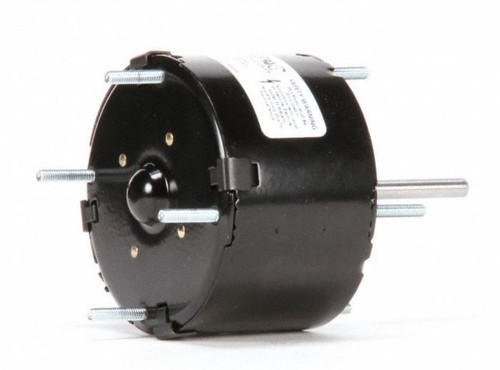

- 1/100 hp 1500 RPM, .6 amps, 115 Volts 60hz.
- Shaft: 1/4" x 2-1/4"
- Rotation = CW Shaft End
- Stud Mount - Bolt Circle - 2.85"
- 3.3 " Diameter Motor
- 4 mounting studs each side of the motor - cut off the studs not needed
- TEAO - Totally Enclosed Air Over Design
- Sleeve bearings
- Motor Length Less Shaft = 2 1/8"
- Comes with standard cord and 2 prong plug
- 1 Year Manufacture Warranty
Suggested replacement for:
Broan/Nutone 99080023, 86322, 86322000
Replaces AO Smith/Century Stock No. 692
AO Smith/Century/Universal JA2C403N, JA2C403, JA2C394, JA2C394N
Dayton 32NA53
Other Models 5KSM59CS3005S, 9M019, 9M118, 9M155, 9M173, 9M388, 9M670, AK594, 8253211210
Fasco 7163-3682, 7163-4763
Nutone Fan QT110 NEW STYLE, QT100L NO HEX, QT100LH, QT100LM, QT100LMH
Nutone Ref: 2200, 4000, 4800, 7000, 8000
Range Hoods 850S, 850W, 851S, 851W, 852S, 852W
Utility Fans 840S, 840W, 841 Motor
