FF50E1XS Nidec 50 hp 3600 RPM 200/400V ODP 324TS (Rigid Base) 3-Phase Fire Pump Motor
FF50E1XS Nidec 50 hp 3600 RPM 200/400V ODP 324TS (Rigid Base) 3-Phase Fire Pump Motor
FF50E1XS Nidec 50 hp 3600 RPM 200/400V ODP 324TS (Rigid Base) 3-Phase Fire Pump Motor
FF50E1XS Nidec 50 hp 3600 RPM 200/400V ODP 324TS (Rigid Base) 3-Phase Fire Pump Motor

Nidec

FF50E1XS Nidec 50 hp 3600 RPM 200/400V ODP 324TS (Rigid Base) 3-Phase Fire Pump Motor

(No reviews) Write a Review
$4,010.05
$3,580.53
SKU FF50E1XS
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200/400V
Horsepower 50 HP
RPM 3600
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 134/67.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 50 hp 3600 RPM, 134/67.0 amps 200/400 Volts 60 Hz Three Phase Motor

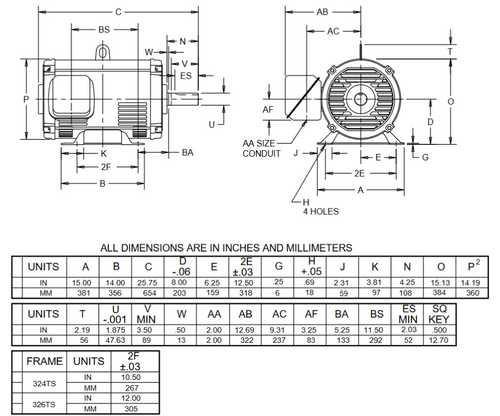

  • NEMA 324TS Rolled Steel Frame, Keyed Shaft 1 7/8" Diameter x 4 1/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

For fire pump applications per NFPA 20 where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. DC37

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200/400V
Horsepower 50 HP
RPM 3600
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 134/67.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
