50 hp 1800 RPM, 46.0 amps 575 Volts 60 Hz Three Phase Motor

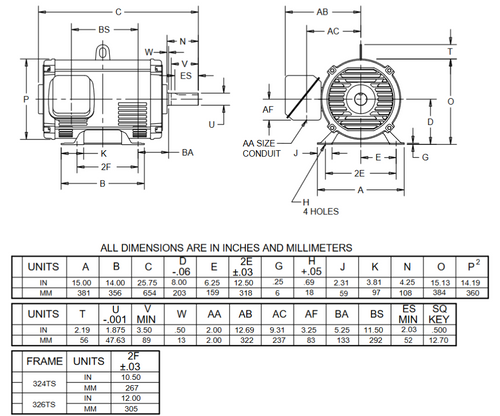

NEMA 324TS Rolled Steel Frame, Keyed Shaft 1 7/8" Diameter x 4 1/4"
Service Factor: 1.15 Overload protection = None
C-Face Mount, Ball Bearings, Class F Insulation, Reversible
1 Year Manufacture Warranty
For fire pump applications per NFPA 20 where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. S766
FF50E2GS Nidec 50 hp 1800 RPM 575V ODP 324TS (Rigid Base) 3-Phase Fire Pump Motor
- SKU:
- FF50E2GS
- Weight:
- 447.00 LBS
- Shipping:
- Calculated at Checkout
- ON SALE:
- LIMITED TIME DISCOUNT
Nidec
FF40E2GS Nidec 40 hp 1800 RPM 575V ODP 324TS (Rigid Base) 3-Phase Fire Pump Motor
Was:
$3,262.00
Now:
$2,912.20
Nidec
FF50E1GS Nidec 50 hp 3600 RPM 575V ODP 324TS (Rigid Base) 3-Phase Fire Pump Motor
Was:
$3,487.00
Now:
$3,113.50
Nidec
DH50S2GF Nidec 50 hp 1800 RPM 575V ODP 324T (Rigid Base) 3-Phase Dry Elevator Motor
Was:
$5,140.00
Now:
$4,589.40
Nidec
FF60E1GS Nidec 60 hp 3600 RPM 575V ODP 324TS (Rigid Base) 3-Phase Fire Pump Motor
Was:
$4,806.00
Now:
$4,291.10
Nidec
FF75E2GS Nidec 75 hp 1800 RPM 575V ODP 365TS (Rigid Base) 3-Phase Fire Pump Motor
Was:
$6,224.00
Now:
$5,557.10
Nidec
FF200E2GS Nidec 200 hp 1800 RPM 575V ODP 445TS (Rigid Base) 3-Phase Fire Pump Motor
Was:
$16,126.00
Now:
$14,398.30
Nidec
FF125E2GS Nidec 125 hp 1800 RPM 575V ODP 405TS (Rigid Base) 3-Phase Fire Pump Motor
Was:
$9,869.00
Now:
$8,811.50
Nidec
FF60E2GS Nidec 60 hp 1800 RPM 575V ODP 364TS (Rigid Base) 3-Phase Fire Pump Motor
Was:
$4,806.00
Now:
$4,291.10
Nidec
FF100E2GS Nidec 100 hp 1800 RPM 575V ODP 404TS (Rigid Base) 3-Phase Fire Pump Motor
Was:
$7,416.00
Now:
$6,621.70
