FX13BK001 | 1/3 HP 3600 RPM 56C 208-230/460V 3 Phase ODP, FLEX-IN-1 Marathon Electric Motor

FX13BK001 | 1/3 HP 3600 RPM 56C 208-230/460V 3 Phase ODP, FLEX-IN-1 Marathon Electric Motor

The Marathon FLEX-IN-1™ FX13BK001 is a versatile 1/3 HP electric motor designed to replace hundreds of discontinued or out-of-stock brand name motors. Ideal for standard 56 frame motor applications, it offers a reliable and cost-effective solution for industrial and HVAC equipment requiring 3-phase power.

Key Specifications

• Horsepower: 1/3 HP
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 1.5-1.5/0.75 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: 56C Frame with removable mounting base
• Bearings: Double-sealed ball bearings

Product Features & Fitment

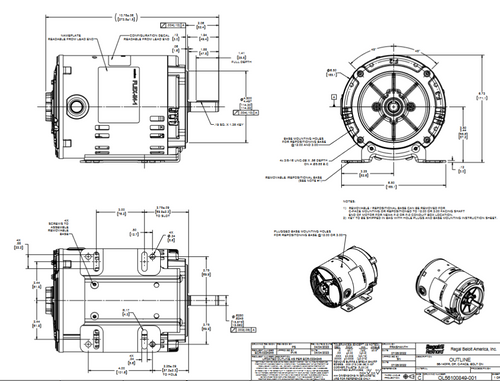

This motor features Marathon’s patent-pending FLEX-IN-1™ design, which includes a multi-mount, repositionable bolt-on base and C-Face for rapid reconfiguration of the conduit box. The conduit box is rotatable 180° with 7/8” and 1-1/8” knockouts on all sides, allowing 360° conduit entry. The fan guard rotates in 90° increments to align with the base position, accommodating F-2 or F-3 conduit box locations.

The repositionable combination base supports NEMA 56, 56H, 143T, and 145T mounting patterns and can be rotated for F-2 or F-3 conduit box locations, with F-1 as the standard factory setting. Included are hole plugs for repositioning the base and a conduit box cover gasket to maintain an IP44 or better enclosure rating after repositioning. This motor is inverter duty rated (10:1 CT) with Class F insulation, ensuring durability and adaptability for various industrial applications.
