Genteq 6203X Condenser Fan Motor – 1/4 HP 825 RPM 208-230V

Evergreen EM Genteq 6203X | 1/3 HP 115/230 Volt ECM Replacement Furnace Blower Motor

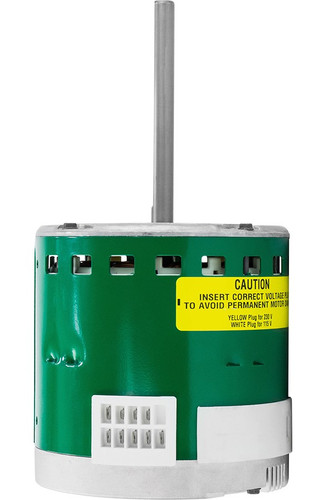

The Evergreen EM Genteq 6203X is a dual voltage, constant torque ECM replacement blower motor designed for furnace applications. It serves as a direct replacement for various OEM models, providing reliable and efficient operation with factory pre-programming for immediate use.

Key Specifications

• Horsepower: 1/3 HP
• RPM: 600-1100 (fully variable, PWM compatible)
• Voltage: 115/208-230V, 60 Hz
• Amperage: 4.1/2.8 Amps
• Frame / Diameter: 48 Frame, 5.6" Diameter
• Shaft Dimensions: 1/2" x 5"
• Rotation: Electronically Commutated Rotation with rotation sensing technology
• Bearings: Ball Bearing
• Enclosure: Open Air Over, Class B Insulation
• Leads: 42"

Product Features & Fitment

This motor comes factory pre-programmed and ready to install, reducing first-time completion rates. It features rotation sensing technology for precise control and is fully variable speed compatible via PWM signals. The motor is designed to replace a wide range of OEM blower motors including models from US Motors, Mars, American Standard/Trane, and others, but it does not replace EON, 3.0, 2.3, or 2.5 ECM motors. The 48 frame and ball bearing construction ensure durability and smooth operation in furnace blower applications.

Cross Reference

• 6103, 6103E, 6103ECTL, 6203, 6203E, 6203ECTL, D672366G29, D672366G30, D672366G31, MOT12293, MOT12294, MOT12295, MOT12495, MOT13002, MOT13590, MOT13591, MOT13766, MOT13905, MOT13906, MOT13911, MOT17018, MOT17042, MOT17837, MOT18455, X70370580020, 1173782, 1173783, 1173784, 5SME39DXL034, 5SME39DXL035, 5SME39DXL294, 5SME39DXL295, 5SME39DXL415, 815585020479, HD42AR226, HD42AR224, HD42AQ234, HD42AQ242, HK42ER210, HK42ER211, HK42ER223, HK42ER224, HK42ER225, HK42ER226, HK42ER227, HK42ER228, HK42ER229, HK42ER235, HK42ER236, HK42ER237, HK42ER238
• US MOTORS:5632, 6633
