Genteq

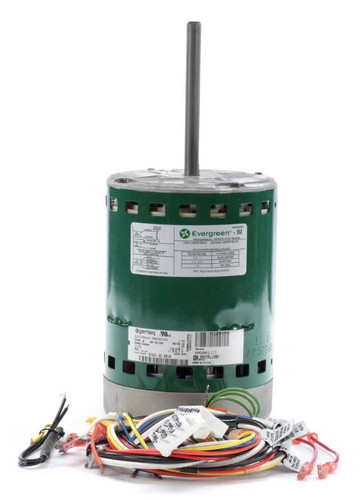

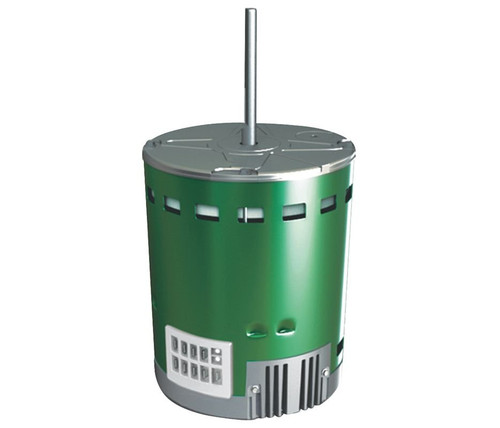

Genteq Evergreen IM 6010 ECM Brushless Direct Drive Blower Motor, 1 HP 115/230V
Write a Review
Genteq
Genteq Evergreen IM 6010 ECM Brushless Direct Drive Blower Motor, 1 HP 115/230V
Genteq Evergreen IM 6010 ECM Brushless Direct Drive Blower Motor, 1 HP 115/230V
The Genteq Evergreen IM 6010 is a 1 HP ECM brushless direct drive blower motor designed for HVAC applications requiring reliable, energy-efficient performance. It serves as a replacement for select PSC motors but is not compatible with existing ECM variable speed, X13, or premium constant airflow motors from OEMs like Carrier or Trane.
Key Specifications
- Horsepower: 1 HP
- RPM: 1100 (4-Speed)
- Voltage: 115/230V, 50/60 Hz
- Amperage: 11.0/6.7 Amps
- Frame / Diameter: 48 Frame / 5.6" Diameter
- Shaft Dimensions: 1/2" x 4.92"
- Rotation: Reversible
- Insulation Class: F
Product Features & Fitment
This motor utilizes ECM technology for improved efficiency and includes overload protection. It features a service factor of 1.0 and is designed for direct drive applications only. Flex mounting is not recommended, and it should not be used in twinned or belt drive systems. Upon initial startup, the motor may pause briefly before spinning. Suggested replacement references include 5SME39HXL111 and Dayton 5XZV6.
Cross Reference
- 5SME39HXL111, Dayton 5XZV6
Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/230V |
| Horsepower | 1 HP |
| RPM | 1100 |
| Frame | 48 |
| Hertz | 50/60 Hz |
| Type | ECM |
| Amperage | 11.0/6.7 Amps |
| Speeds | 4-Speed |
| Insulation Class | Class F |
- 5SME39HXL111, Dayton 5XZV6
