sale
Marathon
H176 Marathon 1/2 hp (2 speed) 115V 1800/1200 RPM ODP 56 Frame Resilient Base Blower Motor
(No reviews)
Write a Review
Write a Review
Marathon
H176 Marathon 1/2 hp (2 speed) 115V 1800/1200 RPM ODP 56 Frame Resilient Base Blower Motor
$534.06
$461.38
SKU
H176
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115V
Horsepower
1/2 HP
RPM
1800
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
8.0/4.2 Amps
Bearings
Ball Bearings
Speeds
2-Speed
Insulation Class
Class B

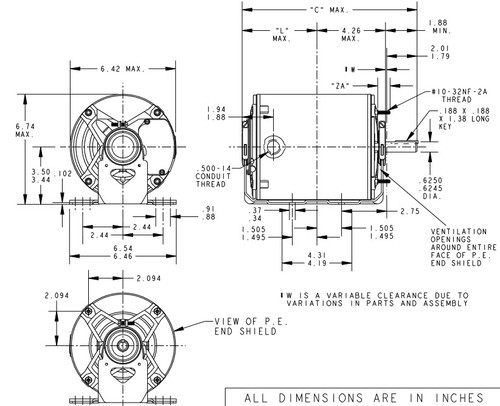

H176 Marathon 1/2 hp (2 speed) 115V 1800/1200 RPM ODP 56 Frame Resilient Base Blower Motor
This Marathon blower motor is a versatile replacement designed for HVAC and air handling applications. It operates at two speeds and is suitable for systems requiring reliable airflow with an open drip proof (ODP) enclosure.
Key Specifications
- Horsepower: 1/2 hp
- RPM: 1800/1200
- Voltage: 115 V, 60 Hz
- Amperage: 8.0/4.2 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56 Frame
- Shaft Dimensions: 1 7/8" length x 5/8" diameter, keyed
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a resilient base for stable mounting and is designed for either vertical or horizontal shaft orientation. It includes thermal auto-protection and Class B insulation for enhanced durability and safety. The split-phase design ensures efficient operation across two speeds, making it suitable for various blower applications.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Frame | 56 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 8.0/4.2 Amps |
| Bearings | Ball Bearings |
| Speeds | 2-Speed |
| Insulation Class | Class B |
