HBV0256C TECO-Westinghouse 25 hp 1200 RPM 324TC Vertical 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

SKU:
HBV0256C
Weight:
759.00 LBS
Shipping:
Calculated at Checkout
$4,228.88
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 25 hp 1200 RPM, 30.30 amps 460 Volts 60Hz. Three Phase

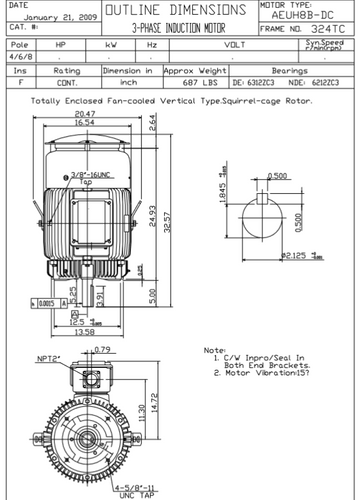

  • NEMA 324TC Frame, 5 x 2 1/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • No Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D
