HD20P2E Nidec | 20 hp 1800 RPM 256T Frame 230/460V TEFC Nidec Electric Motor

HD20P2E Nidec | 20 hp 1800 RPM 256T Frame 230/460V TEFC Nidec Electric Motor

The HD20P2E is a 20 horsepower, 1800 RPM three-phase electric motor designed for industrial applications requiring reliable, continuous duty performance. This model replaces H20P2D and features a premium efficient, cast iron frame suitable for hostile environments such as mill and chemical duty operations.

Key Specifications

• Horsepower: 20 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 47.0/23.7 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

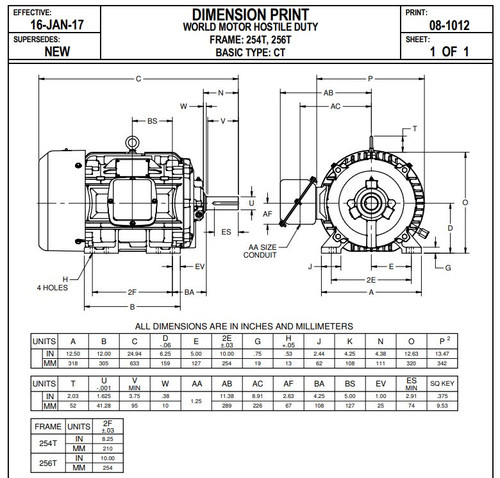

• Frame / Diameter: NEMA 256T / 24.9" "C" dimension
• Shaft Dimensions: Keyed shaft, 1-5/8" diameter x 4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount and is designed for use with variable torque loads up to 20:1 and constant torque loads up to 5:1 on inverter power. It includes corrosion-resistant mill and chemical duty paint, a stainless steel nameplate with CE mark, zinc-plated hardware, steel fan cover and conduit box, and condensation drains with plastic plugs. The motor is suitable for operation in ambient temperatures up to 40°C and includes a wiring diagram on the nameplate for easy installation.

Cross Reference

• H20P2D

Warranty

1 Year Manufacturer Warranty
