HD30P2H Nidec 30 hp 1800 RPM 286T Frame (Rigid Base) 200-208V TEFC 3-Phase Electric Motor
HD30P2H Nidec 30 hp 1800 RPM 286T Frame (Rigid Base) 200-208V TEFC 3-Phase Electric Motor
HD30P2H Nidec 30 hp 1800 RPM 286T Frame (Rigid Base) 200-208V TEFC 3-Phase Electric Motor
HD30P2H Nidec 30 hp 1800 RPM 286T Frame (Rigid Base) 200-208V TEFC 3-Phase Electric Motor

Nidec

HD30P2H Nidec 30 hp 1800 RPM 286T Frame (Rigid Base) 200-208V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$2,106.80
$1,880.83
SKU HD30P2H
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200/208V
Horsepower 30 HP
RPM 1800
Phase Three Phase
Frame 286T
Enclosure TEFC
Hertz 60 Hz
Amperage 81.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
Adding to cart… The item has been added
Description
  • 30 hp 1800 RPM, 82.0-81.0 amps 200-208 Volts 60 Hz Three Phase Motor

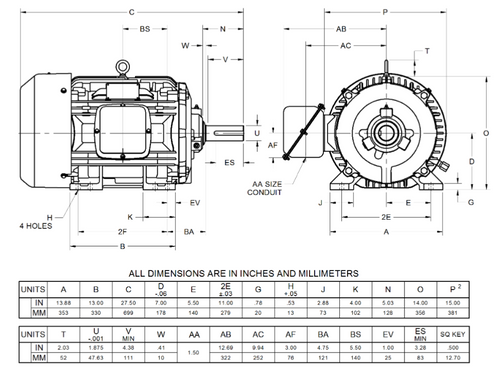

  • NEMA 286T Cast Iron frame Keyed Shaft 1 7/8" Diameter x 4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Hostile duty motor can be used for many applications requiring a three phase electric motor. Inverter Duty. Self-certified Class 1, Division 2, Groups A, B, C, D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GA22

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200/208V
Horsepower 30 HP
RPM 1800
Phase Three Phase
Frame 286T
Enclosure TEFC
Hertz 60 Hz
Amperage 81.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
!
