- 10 HP 3600 RPM, 23.6/11.8 amps, 230/460V 60 Hz. 3 Phase

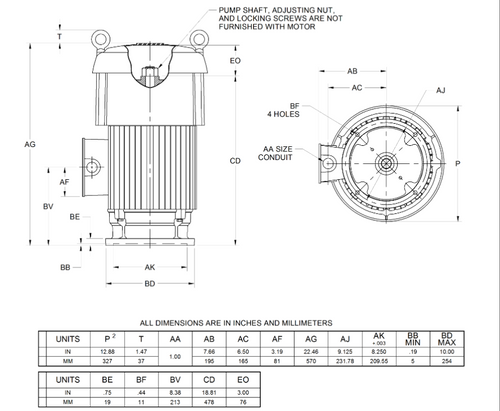

- NEMA H215TP Frame, TUS type, 10" Dia. Base, TEFC
- 1.15 Service Factor, Class F insulation, Thermal Protection: None
- Non-Reversible Ratchet Rotation, Weather Protected Enclosure
- P-Base Mounting, Ball Bearings, High Thrust
- Coupler: Non-Reverse Ratchet (NRR), Height - 18 1/8", Diameter - 1" , Keyway 1/4"
Vertical pump motor for use on turbine, mix flow, and propeller pumps. TEFC = Totally-Enclosed Fan-Cooled, 1 Year Manufacture Warranty. FJ80
