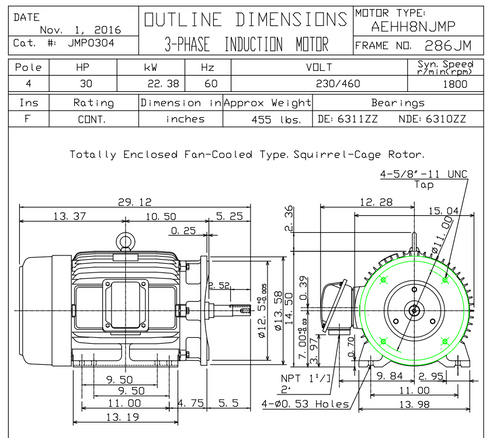

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 30 hp 1800 RPM, 68.6/34.3 amps 230/460 Volts 60hz. Three Phase
- NEMA 286JM Frame, Special Shaft
- Cast Iron Frame, Enclosure: Totally Enclosed Fan Cooled (IP54)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 10:1 Variable Torque, 5:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
