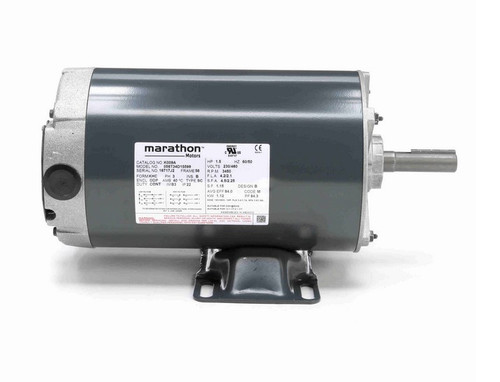

K009A Marathon 1 1/2 hp 3600 RPM 230/460V 3-Phase 56 Frame ODP (rigid base) Motor
(No reviews)
Write a Review
Write a Review
Marathon
K009A Marathon 1 1/2 hp 3600 RPM 230/460V 3-Phase 56 Frame ODP (rigid base) Motor
$561.43
$360.53
SKU
K009A
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
1/2 HP
RPM
3600
Phase
Three Phase
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
4.2/2.1 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base
- 1 1/2 hp 3600 RPM, 4.2/2.1 amps 230/460 Volts 60 Hz. Three Phase
- NEMA Rolled Steel 56 frame, Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class B Insulation
- 3 Year Manufacture Warranty
General purpose three phase electric motor, Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip-Proof. 056T34D15599
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 1/2 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 56 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 4.2/2.1 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
