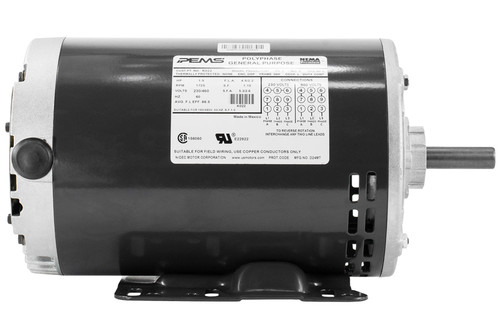

K022 1.5 hp 1725 RPM 56H Frame (Rigid Base) 3 Phase 230/460V (Direct Interchange to Marathon K022)

K022 1.5 hp 1725 RPM 56H Frame (Rigid Base) 3 Phase 230/460V Motor (Direct Interchange to Marathon K022)

This 1.5 horsepower, 1725 RPM electric motor is a direct OEM aftermarket replacement designed to fit Marathon K022 series models. Ideal for industrial applications requiring a reliable 3-phase motor with a rigid base mounting configuration.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1725
• Voltage: 230/460 V
• Amperage: 4.5/2.2 A
• Enclosure: ODP (Open Drip Proof)
• Frame / Diameter: NEMA 56H
• Shaft Dimensions: 5/8" diameter x 1-7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

Manufactured by Nidec Corp., this motor is engineered to meet OEM standards and is made from high-quality materials for durability and performance. It features a rigid base design for stable mounting and is a direct interchange for Marathon K022, K022A, K022B, K022C, and related model numbers, ensuring easy installation without modification. The motor includes Class B insulation and a service factor of 1.15 for enhanced reliability.

Cross Reference

• the following models
• Marathon K022, K022A, K022B, K022C, 056T17D5309, 056T17DRR70035A1, 056T17D15911, 056T17D15941
• P063GAJ1167015B

Warranty

1 Year Manufacturer Warranty
